How Digital Tyre Air Pressure Gauge with Dual Head Air Chuck save time on Every Tyre for Inflation?

Maintaining correct tyre pressure is a critical safety task, yet it often becomes difficult in the daily grind. Whether you are managing a busy Kiwi mechanical workshop, overseeing a commercial fleet, or maintaining heavy machinery on a Waikato farm, every minute lost to poor-quality gear is a minute of productivity gone.

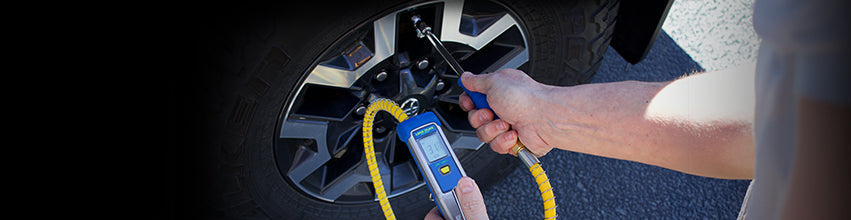

Standard pumps and chucks often require constant reseating and manual double-checking. The LockNFlate® PRO L309 Digital Tyre Inflator changes the game. It isn’t just a measuring tool; it’s a purpose-built system used for all 3 purposes: inflation, deflation and measurement.

Technical Specifications:

To appreciate how this tool saves time, you have to look at the professional engineering under the hood. Designed to meet international standards, it is available in both NPT and BSPT variants to fit New Zealand’s existing air lines.

Feature	Specification
Tool Type	Handheld Linear Digital Inflator
Operating Range	7–174 PSI (0.5–12 BAR)
Max Inlet Pressure	218 PSI (15 BAR)
Accuracy	± 1 PSI
Inflation Flow Rate	900 L/min @ 174 PSI
Construction	Die-cast Aluminium, Steel, & Hybrid Polymer
Display	Large Backlit LCD (Auto-On/Off)
Functions	Inflate, Deflate, and Measure
Temp Tolerance	-10 °C to +50 °C



Core Benefits for the New Zealand User: -

Investing in a professional-grade digital inflator provides several advantages: -

• Trust the First Reading: With an accuracy of ± 1 PSI, you don’t need to double-check with a secondary gauge.
• Visibility in All Conditions: The backlit LCD ensures clear readings in a dimly lit garage or under the harsh midday sun.
• Three-in-One Control: A single trigger allows you to inflate, deflate, and check pressure without disconnecting the tool.
• Reach the Hardest Valves: The 9.5-inch angled dual-head chuck provides easy access to inner dual valves on trucks and trailers.

Five Ways This Tool Speeds Up Your Workflow: -

1. High-Volume Air Delivery

With a flow rate of 900 L/min, this tool drastically reduces wait times, which is essential when filling large agricultural or transport tyres.

2. The Dual-Head Advantage

The angled dual-head chuck allows you to reach both inner and outer tyres on dual-wheel setups effortlessly. It’s an open-flow design that connects securely every time.

3. Real-Time Digital Feedback

Digital interface provides instant, steady feedback as soon as pressure is sensed, allowing you to hit the target pressure on the first click.

4. Integrated Pressure Management

If you accidentally over-inflate, there’s no need to use a separate tool. The linear design features a push-button to keep your workflow continuous and uninterrupted.

5. Intelligent Battery Preservation

There is no "on" switch to worry about. The device wakes up automatically when it feels air pressure and shuts down when finished, ensuring the pre-installed AAA batteries last through months of heavy use.

Versatile Applications across NZ

• Tyre Service Centres: Perfect for high-turnover shops where accuracy and speed are non-negotiable for customer safety.
• Transport & Logistics: Ideal for trucks and buses. The dual-head reach is a lifesaver for multi-axle fleet maintenance.
• Agriculture & Rural Work: Tested to work from -10°C to +50°C, it’s rugged enough for the farm, regardless of the season or the tyre size.
• Mobile Mechanics: Battery-powered and lightweight (under 1kg), making it the perfect addition to a roadside service van.

What’s Included?

Each kit is a complete solution, kitted locally to ensure the highest quality control:

1. LNL65309: Linear Digital Inflator unit.
2. Hybrid Hose: 800mm (32") flexible polymer hose (NPT or BSPT).
3. LockNFlate 9.5-inch angled dual-wheel air chuck.
4. Extras: N-style fittings, A5 manual cards with QR to get the user manuals, and a calibration certificate.

Conclusion: -

The LockNFlate® PRO L309 is more than just a gauge; it’s a precision instrument designed to remove the frustration and delays of tyre maintenance. By combining high-flow speed with the versatile dual-head chuck, it allows Kiwi professionals to work faster and with total confidence.

Frequently Asked Questions

Q1. Can I see the screen in a dark workshop?

Yes. The large backlit LCD is designed specifically for high visibility. It features auto-sensing technology that wakes the screen up as soon as you connect it to a tyre.

Q2. Can I use this to lower tyre pressure?

Absolutely. This is a multifunctional tool that allows you to inflate, measure, and deflate through a single handheld unit, ensuring you never have to disconnect until the job is done perfectly.
