Digital vs Analogue Air Pressure Gauge: Which One Should You Buy?

If you're trying to decide between the LockNFlate PRO Analogue and Digital inflators, you're not choosing between a good option and a lesser one — you're choosing between two tools built from the same foundations, each designed to suit a different set of working conditions. They both operate within a 0–174 PSI range, handle a maximum inlet pressure of 218 PSI (15 BAR), and boast a fast inflation flow rate of 900 L/min. Built tough with a mix of ABS plastic, rubber, and steel, they feature an 800 mm hybrid polymer hose and the signature LockNFlate Air Chuck. However, the "best" choice depends entirely on how you prefer to read your data and manage your power.

Analogue vs Digital Tyre Air Pressure Gauges: -

1. Readability and Display

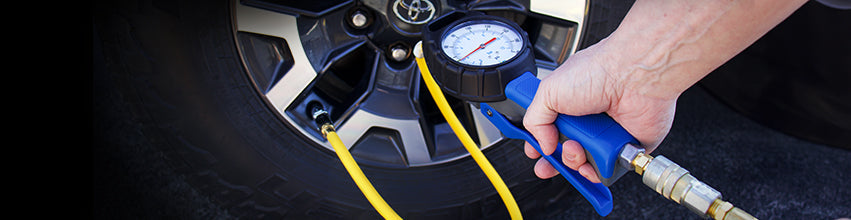

• Analogue Pressure Gauge:
  Features a traditional, large mechanical dial. It’s the "old faithful" option—no screens to smash, no backlights to flicker out, and it’s always on. It is the perfect fit for professionals who value mechanical simplicity and immediate readings without pressing a button.

• Digital Pressure Gauge: Available in three variants (including the 1200 MAH and 2200 MAH Lithium-ion models, or the Alkaline battery version). These feature a crisp LED display with a white backlight. This is a game changer for early morning fleet checks or working under a vehicle in a dim garage where a standard dial might be hard to see.

2. Power Management

• Analogue Pressure Gauge: Completely battery-free. Because the dial is purely mechanical, it requires zero power. This makes it ideal for remote "off-the-grid" locations across NZ or trade environments where you can't always find a USB port.
• Digital Pressure Gauge: Preset digital gauges are powered by a rechargeable 2200 MAH Lithium-ion battery (via USB-C) and other digital gauges are powered by AAA batteries. While rarely an issue in a modern workshop, it’s a factor to consider if you’re out in the field for long stretches.

3. Common Specifications

Despite the display differences, both PRO inflators share:

• Functionality: 3-in-1 tool (Inflate, Deflate, and Measure).
• Performance: 0–174 PSI range with a 900 L/min flow rate @ 174 PSI.
• Durability: Operating temperatures from –10°C to +50°C and a weight of 0.60 kg.
• Included: Calibration certificate, 800 mm BSPT hose with bend restrictors, and a one-year warranty.

Which Gauge Suits Your Application?

The Analogue Inflator is your best bet if:

• You are a technician or agricultural operator in remote areas where charging a battery is an unnecessary hassle.
• You work in a high-volume workshop where you need a "grab-and-go" tool that is always ready.
• You prefer the tried-and-true dial format and don't want to worry about electronics failing mid-job.

The Digital Inflator is the winner if:

• You often work in low-light environments, such as pre-dawn inspections or undercarriages.
• Your work requires higher precision, as digital units offer a tighter ±1 PSI tolerance compared to the analogue’s ±2 PSI.
• You already have USB-C charging infrastructure in your workspace and prefer a modern, backlit interface.

Conclusion: Making the Choice

The decision between analogue and digital isn't about quality—it's about your environment.

Feature	Analogue (LNL65306-BSPT)	Digital (LNL65304-BSPT)
Best For	Reliability & Battery-free use	Precision & Low-light visibility
Accuracy	±2 PSI	±1 PSI
Power	None required	1200 MAH Lithium-ion (USB-C)
Display	Anti-glare mechanical dial	Backlit LED
Warranty	1 Year	1 Year



Both tools offer the same high-flow engineering and professional-grade LockNFlate® Air Chuck. Whether you go digital or stick with the dial, you're getting a tool designed for serious work.

Frequently Asked Questions

1. Does the analogue version need any batteries at all?

No. The LockNFlate PRO Analogue operates on a purely mechanical system.

 It’s ready to use the moment you pick it up, making it the top choice for remote sites where charging isn't an option.

2. Which gauge is better for dark workshops?

The LockNFlate PRO Digital is the clear winner for low-light conditions.

 Its backlit LED screen ensures you can read your tyre pressure accurately during early morning starts or in the dark corners of a workshop, whereas the analogue dial requires ambient light to be read clearly.
